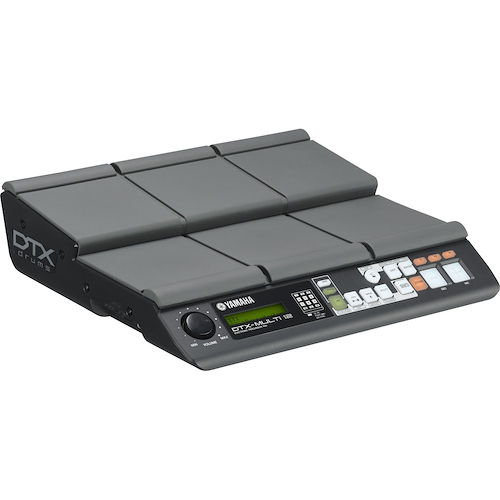

YAMAHA DTXM12

Descripción

Size/WeightDimensions Width 345mm , Height 96mm, Depth 319mm ,Weight 3.3kg , Pad sectionBuilt-in pads 12 , External inputs 5 (three-zone x 1; monaural x 4) , Tone generatorMaximum polyphony 64 notes , Voices Drum and percussion: 1,061 Keyboard: 216 , Effects Variation x 42 types; Chorus x 6 types; Reverb x 6 types: 5-band master equalizer , Drum kits Preset: 50 User-defined: 200, Wave memory 100 MB (16-bit linear conversion) , SequencerNote resolution Quarter note / 480 , Patterns Preset patterns: 128 phrases (including 3 demo patterns) User-defined patterns: 50 phrases, Sequence formats Proprietary SMF Format 0 (for loading only) , Sequence capacity 152,000 notes , Recording method Real-time overdubbing , WavesReadable quantity 500 , Bit depth 16 bit Wave memory 64 MB , Maximum size Mono sample: 2 MB Stereo sample: 4 MB , Sample formats Proprietary, WAV, and AIFF , OtherDisplay Backlit LCD with 2 rows of 16 characters , Connectors PAD (13) jack (standard stereo-phone plug; left = trigger, right = rim switch) PAD (14)/(15) and PAD (16)/(17) jacks (standard stereo-phone plug; left = trigger, right = trigger) HI-HAT CONTROL jack (standard stereo-phone plug) FOOT SW jack (standard stereo-phone plug) OUTPUT L/MONO and R jacks (standard phone plugs) PHONES jack (standard stereo-phone plug), AUX IN jack (standard stereo-phone plug), MIDI IN and OUT connectors, USB TO HOST port, USB TO DEVICE port, and DC IN. Power Consumption 9W (DTXM12 and PA-5D adaptor) , Package Contents Power adaptor (PA-5D or an equivalent recommended by Yamaha), Owner's Manual , Data List booklet, DVD-ROM (Cubase AI5) , Trigger sectionPad functions Increment or decrement of drum kit, pattern, or tempo; tap tempo; switching on or off of click-track; transmission of control change messages , Click-trackTempo 30 to 300 BPM. Tap tempo functionality , Beats 1/4 - 16/4, 1/8 - 16/8, 1/16 - 16/16 , Note timing Accent notes, quarter notes, eight notes, sixteenth notes, triplets
